CLOCKstep : MULTI

CLOCKstep : MULTI

Precision MIDI Clock and Analog Sync Box with Human Groove Tracking. Sync over MIDI DIN, USB, and Audio with a built-in metronome.

Low Inventory Alert
$249.00 USD
$249.00 USD
Sale Sold out
Power Adapter
Choose "No Adapter" and save $10 if you won't need it.
View full details

Science of Sync. Art of Groove.

CLOCKstep:MULTI is dedicated to one thing: perfect synchronization between machines and musicians.
Whether it’s sending clock with impeccable precision or following the "imperfect" timing variations of a live drummer, it adapts to your needs and will keep a stage full of gear in musical alignment.

Use it for ...

  • Reliable Master Clock

    Rock-solid MIDI/DIN/Analog Sync and Transport control for sequencers, tracks, loopers, and vintage gear.

  • Following a Human Beat

    Put the drummer in the driver's seat. It analyzes their beat in real-time and sends continuous MIDI and Analog Sync that breathes with their tempo.

  • DAW Sync

    Simple and effective synchronization of your computer DAW and external hardware. Sample Accurate Clock eliminates drift and excessive amounts of jitter and latency between them.

  • Metronome Click

    Send Audio Metronome Click to bring it all together with live musicians. Set the metronome's BPM, Interval Volumes, Swing and Time Signature options to match any desired groove.

  • Automating MIDI

    At a critical moment, when your attention may be divided, automatically send quantized or repeating MIDI Commands, perfectly timed on a Bar Line.

  • Bridging Connections

    Pass any MIDI Message between USB and MIDI DIN in both directions. Creates a class-compliant 1x1 MIDI Interface on a computer or other USB Host.

  • Kristian Dunn - El Ten Eleven

    "We've been searching for years for something that's reliable to keep my looper pedals synced. CLOCKstep:MULTI is really easy to use and is reliable like a swiss watch. Everything else we tried fell short."

  • Luca Abatemarco - Electronic Creatives

    "Using Audio In Sync...I love that feature. And the form factor of the pedal scratches my brain in just the right way."

  • Brian Fasani - 51 Peg

    "It keeps all the gear in perfect sync and is easy to control from behind the kit. I like the number of options for setting the click audio. I can always set the right feel."

Features

  • MIDI Clock Sync

    Sends clock with precise timing, including using decimal point BPM values.

    Follow external clock on either the MIDI IN or Audio IN when the situation requires.

    Automatically switch between the role of Clock Master to Clock Follower with ease.

  • Analog Sync

    The 3.5mm patch bay can send up to five +5v Analog Sync signals, each with their own configurable sync rate.

    44 Sync Rates are available to choose from. Keep outputs in tight coordination, or let them spin off on their own for a bit of chaos.

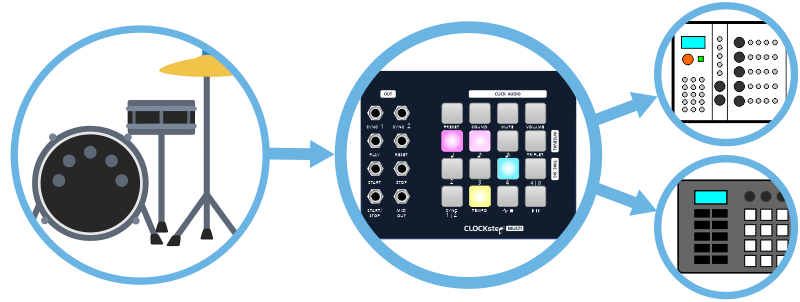

  • Follow Beat (Human Groove Tracking)

    Tracks live drums in real-time and continuously updates the tempo so that sequencers, synths, loopers, and delays groove with the player.
    Compatible with both MIDI and Audio input. Learn More.

  • Sample Accurate Clocking

    For the tightest sync with a DAW, send Sample Accurate Clock from the computer into the audio input to resolve excessive jitter or latency.

  • Transport Control

    Basic Start/Stop/Pause operation is the default, but there are advanced choices you can make like Quantize and Resync.
    Or, let Clock and Transport operate completely independent from each other. You are in control.

  • Metronome Click

    A dynamic click sound using your own preference of Quarter, 8th and 16th note intervals.

    Each Interval has independent volume and swing control for getting just the right feel.

  • Time Signatures

    Use Odd Time Signatures with either Quarter Note and 8th Note beat lengths.

    The beginning of each bar is tracked by both the Click Audio and any Quantized features.

  • Presets

    Don't be concerned with changing settings between songs or try to remember what the tempo should be.

    Save and Recall up to 40 Presets.

  • Latency Compensation/Offset

    Nullify any latency that creeps up between your external sequencers and DAW with positive or negative millisecond offset adjustments.

  • MIDI Remote Control

    Virtually every setting in CLOCKstep:MULTI can be configured using external MIDI control.

    Hook up any MIDI Foot Controller.

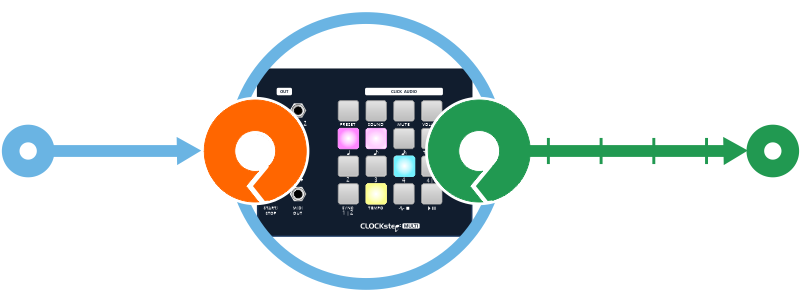

  • MIDI Quantize

    MIDI Commands that are passing through CLOCKstep:MULTI can be held in memory temporarily and sent at the top of the next Bar.

  • MIDI Repeat

    Capture and hold a MIDI Command once in memory and have it repeatedly sent at specified Bar intervals automatically.

  • USB Class-Compliant

    A 1x1 MIDI USB Interface can be established to your computer and serve as your system's MIDI Interface.

    MIDI can pass thru the USB and DIN/TRS MIDI ports in both directions.

Trying to decide if you need so many features in a MIDI Clock device?

Things that you may not yet know you need when selecting a MIDI Clock device

1 6
See All Videos ...
  • Power Requirements: 9 volts DC max. 200mA Nominal.
  • Power Connection: 2.1 mm barrel, center negative
  • I/O: Audio (Sync In, Click Out), MIDI (DIN, USB, TRS), Control Voltage (3.5mm TSx7)
  • Protocols: MIDI, Sample Accurate Audio Sync and 0/+5 Control Voltage for Modular Synth/Eurorack.
  • Dimensions: 4.7" x 3.65" x 1.72"
  • Assembled in the USA
